    Bluetooth Handheld UHF Read Write Equipment, Handheld Bluetooth UHF Reader, suitable for Android

    Ask Lasest Price
    Brand Name : SeabreezeRFID
    Model Number : RBL-915M
    Price : USD 1.0-2.0
    Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 2,000pcs per month
    Delivery Time : Sample 8 work days sent to your office
    • Product Details
    • Company Profile

    Bluetooth Handheld UHF Read Write Equipment, Handheld Bluetooth UHF Reader, suitable for Android

    Bluetooth Handheld UHF Read Write Equipment, Handheld Bluetooth UHF Reader, suitable for Android

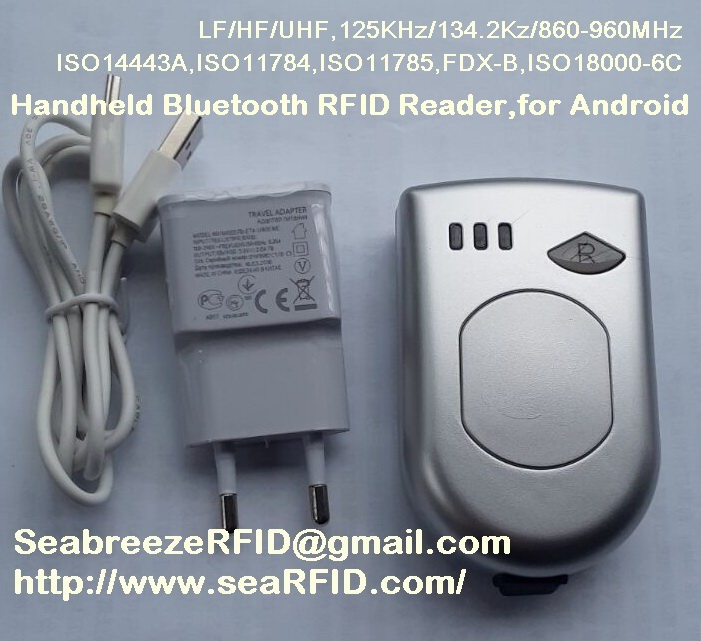

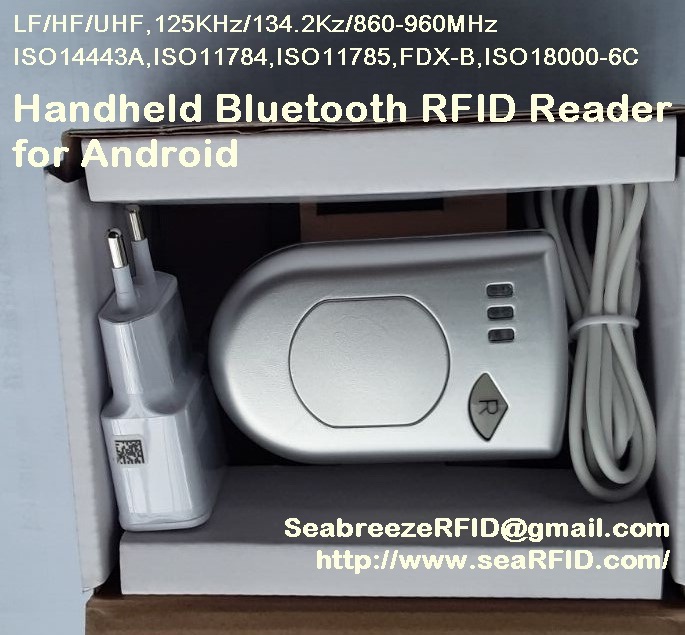

    125KHz, 134.2KHz, 13.56MHz, 840-960MHz Handheld Bluetooth RFID R/W device is SeabreezeRFID LTD. development and production, used in reading RFID smart label(RFID tag) through radio frequency, and uses USB or bluetooth (class two) technology to transfer the card data to computer/PDA/smartphone/MID in a real time mode. It can read 125KHz LF, 134.2KHz LF, 13.56MHz HF, 840-960MHz UHF RFID smart tags. It is widely used in the industries of Animal identification and tracking management / Security / Patrol / Logistics / Electric power / Water supply / Mining / Oil / Finance and Railway system, etc.
    Product features
    1. Wireless connection. This product uses Bluetooth technology with the PDA or PC and other wireless connection, read RFID tags.
    2. The card reading long distance.
    3. Long standby time. Battery big capacity, need not often change the battery or charge.
    4. Charging ways is optional. Product display adapter charging are available, and can also use USB conversion line in the adapter charging through the USB port of your PC.
    5. Small volume, light weight, easy to carry and use.

    Technical parameters


    ItemParameters
    Operating Frequency840~960MHz (customized according to customer requirement)
    Support protocolEPC C1 Gen2, ISO/IEC 18000-6C
    Work modeFHSS or fixed frequency transmission
    Antenna ConnectionBuilt-in 1.5dBi antenna
    Maximum RF output15dBm
    Transmit power10-15dBm (set by software)
    Read modeSupport auto-running, interative and trigger-activating work mode
    Identification time<8ms
    Read rangeAbout 20cm (Tag Dependent, write range is 70% of read range)
    Communication InterfaceWireless Bluetooth; Mini USB
    Bluetooth Transmission Distance10~15m
    Working voltageDC3.7-4.2V (built-in rechargeable lithium battery)
    Battery capacityRechargeable 3.6V Lithium Ion 1700 mAh
    Charging voltage110-240V AC, 50/60Hz
    Power consumption≤1W
    Bluetooth standardBluetooth 2.0, Class 2, GAP, SDAP, SPP, GOEP
    USB ChangeUSB 2.0 Standard Port
    Communication baud rate57600bps
    Dimension83X52X25.8mm
    Weight110g
    Work statusBuzzer, Indicator
    Humidity5%~90% relative
    Operating Temperature-20℃~+70℃
    Storage Temperature-40℃~+85℃
    AttachmentCharger, Data lines, SDK

    Areas of application
    Typical applications have power, oil, mining industry, security, logistics, finance, water supply, road transportation, railway transportation, enterprise management, animal tracking management, etc.
    The power industry: because contain equipment such as power plants, power lines and substations are widely distributed, combined with the mobile terminal, for power plants, power lines, substations and other electrical equipment inspection management. Implementation of personnel in place regulation, quickly tap inspect equipment information.
    The oil industry: Because the region are widely distributed, such as oil mining, processing and combining with the mobile terminal, realize the oil production, processing equipment such as inspection, maintenance and management. Implementation of personnel supervision, bring up the equipment information quickly.
