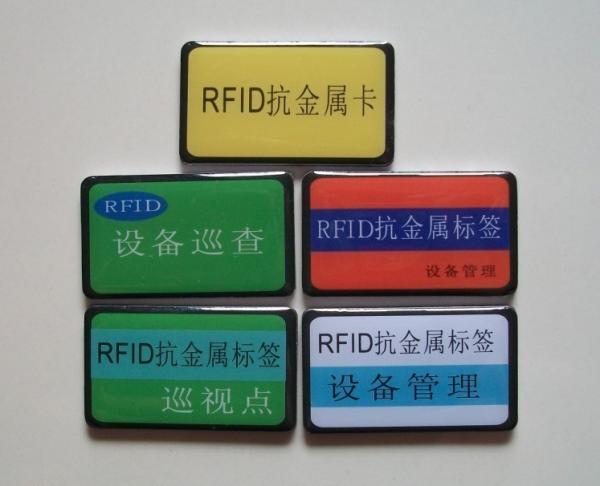

Encapsulated with radio anti-interference of electromagnetic wave absorbing materials and Crystal Epoxy in the production of LF, HF and UHF frequency band of the electronic tag, developed by our company production, quality performance very good, suitable for use in large open-air electrical equipment inspection, inspection of large tower poles, medium-sized elevator inspection, large pressure vessels, gas cylinders, factory equipment management, line inspections, metal bridge quality inspection, tunnel inspections, machine identification, vehicle car number plate, metal container management, product tracking electric home appliances and so on. Can be directly paste in the appropriate position of the tested object, such as identification and tracking management.

Antenna material: aluminum

Substrate material: PET

Antenna thickness: 0.03mm

Substrate material thickness: 0.03mm

Induction frequency: 14.0±0.5MHz/125KHz

Read and write distance: 0-10cm

Wave absorbing material thickness: 0.2mm or 0.5mm

Chip optional: 1k S50/S70, Ultralight, FM1108, EV1 D21/D41/D81, TI Tag, I CODE 2, low frequency can use EM4101 or compatible TK4100

Operating frequency: 14.0±0.5MHz/125KHz

Protocol standards: ISO14443A

Resonance frequency: 14.0±0.5MHz/125KHz

Typical activated field intensity (reading): 94dBuA/m#

Typical activated field intensity (write): 97dBuA/m#

Communication rate: 106K bits/s

Erasable number: 100000 times

Data save time: 10 years

Environmental parameters

Ideal storage environment: +15℃-+25℃(+59℉-+77℉),20%RH-45%RH

Tolerance storage environment: -25℃-+50℃(-13℉-+122℉),20%RH-90%RH

Tolerate working environment: -25℃-+65℃(-13℉-+149℉),20%RH-90%RH

Resistance to pressure capability: ≦5N/m㎡

Resistance to bending capacity: ≧φ20mm

Packing

A single

Packaging: thermal plastic packaging, moisture-proof packaging, neutral label

Typical packing quantity: 1000pcs/box; 3000pcs/box; 5000pcs/box; 10000pcs/box

Scope of application: Gas cylinders, tanks, vehicles number plate, machine identification, mold tracking, metal containers, such as the identification and management.
