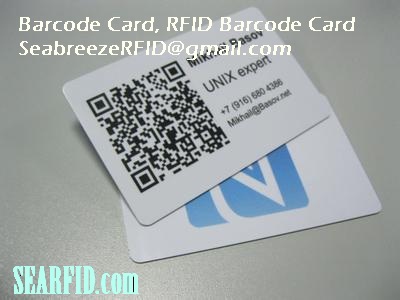

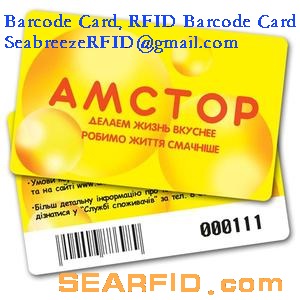

Barcode Card, RFID Barcode Card, UV barcode card, Print a variety
of barcode
Barcode cards can also make the RFID card encapsulation chip.Can
also be on the surface hot laser gold or laser silver, or with a
magnetic stripe, etc.
UV barcode card, if the bar code on the surface of UV effects, so
the barcode will have stereo feeling, and wear resistance.
Induction frequency: 125KHz, 13.56MHz, 860MHz~960MHz
Chip: 1k S50, 4k S70, Ultralight 10, Ultralight C, I CODE
SLI/SLI-S/SLI-L/SLIX, EV1 2K/4k/8K, Ti2048, EM4200, EM4305, EM4450,
TK4100, T5577, CET5500, 1, 2, S256, PLUS2K/4K, FM11RF08,
FMl208(CPU), etc.
Card Length: 85.48-85.72mm
Card Width: 53.92-54.02mm
Card Thickness: 0.76mm±0.02mm
Materials: PVC, ABS, PET, PETG, Paper, etc.
Printing: four-color offset printing, screen printing and other
printing process
Barcode card knowledge
Barcode card Arranged in a set of rules of stripe, blank and the
corresponding characters of bar code information in the record, the
common barcode symbols print by black stripe and white blank, when
shine light on the bar code, black stripe and white blank to
produce a strong contrast, use a different reflectivity of the
stripe and blank to read information.
Barcode card is divided into two kinds of One-dimensional code and
QR code. One-dimension code is commonly used, such as daily
commodity barcode on the outer packing is One-dimensional code. Its
information storage capacity is small, can store only a code, when
using through this code to taken data in a computer network. QR
code is developed in recent years, it can in the limited space to
store more information, including text, images, fingerprints,
signature, etc., and can used break away the computer.
Barcode card making simple, ordinary barcode according to certain
requirements to print or copy, lower cost, but its read equipment
(especially the QR code read equipment) expensive. Unlike magnetic
card and IC card, barcode card information cannot be changed, in
addition, safety performance is poor, the standard is not unified,
which limits its application.
Bar code to load information is Numbers, letters, these Numbers and
letters is after according to certain standard number encoded
string.
Barcode encoding technology mainly involves coding rules and
standards. Barcode encoding rule is to make standards and codes of
the main basis of bar code identification.
At present, the international commonly used code system has the
following kinds:
(1) UPC code: in 1973,the United States took the lead in the
domestic commercial application in the system. The code system is
mainly used for commercial system. This code length is fixed for 12
digit.
(2) EAN code: in 1977,the European economic community countries
according to the UPC code standards formulated the European goods
code EAN code. EAN code has two types: EAN-13 code and EAN-8 code.
(3) Interleaved 2 of 5 Code: a variable length of continuous self
checking system of digital Code.
(4) Code 39 (Code 3 of 9): length variable discrete self checking
letters word type Code system.
(5) Codabar: length variable discrete self checking system of
digital code. Commonly used in warehouse, and air express parcel
management, blood bank.
(6) Code128: a variable length of continuous alphanumeric code
system.
(7) China Post Code: China Post express special Code.
(8) Other Code: Code 93, Code 49, Code 2 of 5, 11 code, Matrix 2 of
5 code.
Aviable Crafts
Printing: Offset Printing, Silkscreen Printing, Thermal printing,
Ink-jet printing, Digital printing.
Security features: Watermark, Laser ablation, Hologram/OVD, UV ink,
Optical Variable ink, Hidden barcode/Barcode mask, Graded Rainbow,
Micro-text.
Others: Chip data initialization/Encryption, Personalized magnetic
stripe programed, Signature panel, Barcode, Serial number,
Embossing, DOD code, NBS convex code, Die-cut.
Competitive Advae
The best price;
Excellent quality;
Fast delivery;
Large capacity and a wide range of products;
Accept small order;
ODM and OEM products according to customer's demand.
Declare: The showing picture is only for reference of our product.
All related to intellectual property rights of trademark are
belongs to trademark company.
