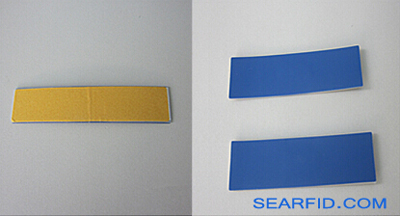

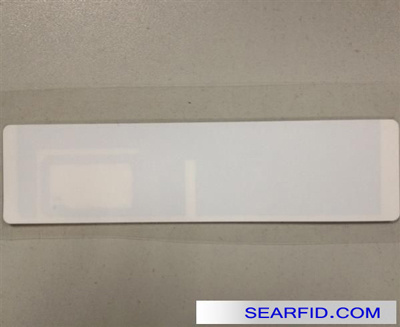

This product is a passive UHF anti-metal tag. Product identification long distance, cost-effective od is good. Close to 1mm thickness, metal resistance is gook, this product can encapsulate different chip, different standard frequency, can be customized various size, printing LOGO. Widely used in logistics management, product tracking, product security, warehouse management, asset management, production control, vehicle management, etc. Such as: dangerous goods-gas cylinder management; The power industry-inspection management and so on.

Advantages: Identify distance, in the case of the same volume, distance than similar products, the identification requirements in the case of distance performance is excellent; High cost-effective

ODM and OEM products according to customer requirements.

Product parameters:

Chip: IMPINJ M4QT

Frequency: 902-928MHz

Conform to the agreement: EPC global C1 Gen2 / ISO 18000-6 - c

Read distance: 7 meters (fixed); 3 meters (hand-held)

Time to read and write: 1 (MS)

Storage: EPC≥96bits, User Momery 512 bits

Applicable temperature: 40℃-+85℃ (-40℉-+185℉)

Protection grade: IP65

Shockproof shockproof level: MIL STD 810-FBS EN 60068-2

Fixed way: 3M paste stickers

Wipe life: 100000 times

Label life: 5 years

Materials: Epoxy

Size: 11.2×25×1cm or 90×25×1cm, can be customized

Weight: 3.5g
