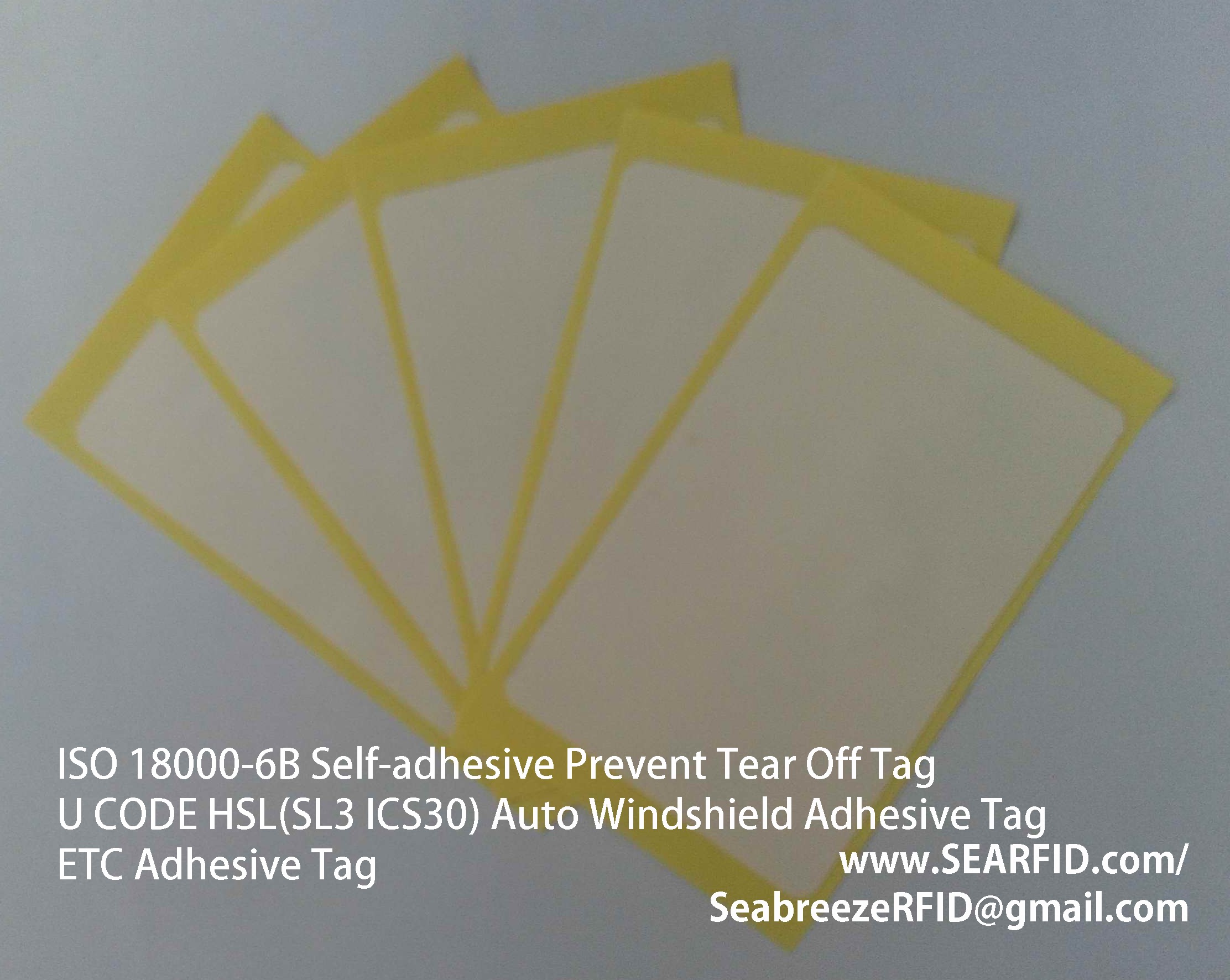

    ISO 18000-6B Self-adhesive Prevent Tear Off Tag, U CODE HSL(SL3 ICS30) Auto Windshield Adhesive Tag, ETC Adhesive Tag

    Ask Lasest Price
    Brand Name : SeabreezeRFID
    Certification : RoHS
    Model Number : BY79962
    Delivery Time : Asap
    Payment Terms : L/C, T/T, Western Union, PayPal, MoneyGram
    Supply Ability : 200,000pcs/month or Specify the number
    • Product Details
    • Company Profile

    ISO 18000-6B Self-adhesive Prevent Tear Off Tag, U CODE HSL(SL3 ICS30) Auto Windshield Adhesive Tag, ETC Adhesive Tag

    ISO 18000-6B Self-adhesive Prevent Tear Off Tag, U CODE HSL(SL3 ICS30) Auto Windshield Adhesive Tag, ETC Adhesive Tag

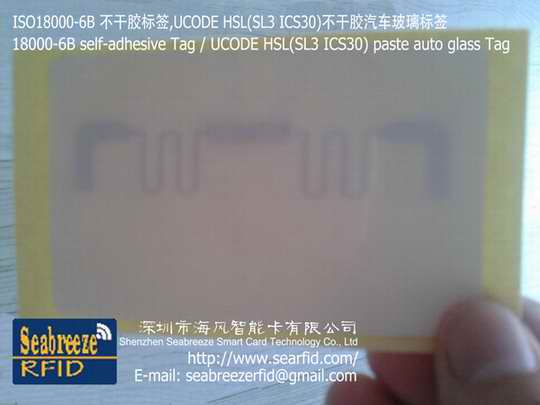

    ISO18000-6B tag is a UHF passive smart tag, conforms to the ISO18000-6B standard of the electronic label, the label has a long-range identification and high speed anti collision mechanism, can be applied to intelligent weighing management, highways (roads and bridges), electronic toll collection management, Vehicle license plate security identification management, vehicle marshalling scheduling management, intelligent parking lots of field management, port of entry and exit vehicle inspection management, port container management etc..
    The ISO18000-6B tag, can run in 860-960MHz UHF band, the frequency range is wide (up to 100MHz bandwidth, in order to facilitate the regional UHF tag frequency selection,To facilitate regional UHF tags frequency points to choose, to be able to communicate with the local telecom business 900MHz frequency stagger applications), its machines use frequency-hopping is available and not subject to change radio frequency band plan in different areas of impact, thus allowing the same tag can be read anywhere in the world. Tags with anti-collision performance, can be deployed in a variety of environments worldwide, has read / write field programmability and faster tag read / write speed, can run in dense reader environments and other functions.

    Main advantages
    Prevent tearing off tag, effectively prevent artificial tear off.
    Advanced anti-collision performance and high transmission rate.
    Use 18000-6 international standard protocol.
    Large storage capacity,to record a large number of properties and information, particularly useful for goods-related data to track feedback, queries and terminal information.


    Technical parameters


    Item
    Parameters
    Tag mediumair medium/glass medium
    Chip manufacturerOriginal
    ChipU CODE HSL (SL3 ICS30)
    Read modepassive non-contact IC chip
    Chip capacity2k(2048bit)
    Programming cycles100,000 times
    Data retention10 years
    Chip structure64 block, 4bytes/block
    Communication protocolISO 18000-6B
    Operating frequencyregular production by default with 915MHz (can be customized European standard 868MHz)
    Baud rateup to 40kbit/s
    Anti-collisionbinary network
    Operating distance7 meters (according to the power of Reader and Antenna size)
    Unique serial number8 bytes (for example: an HSL UID number is hexadecimal E0 04 00 00 BF EE B2 05, each different
    Write protectbyte mode
    Read directionpolarization direction according to the selection of equipment
    MaterialArt paper, PET+Al Etching Antenna
    Size85.6×54mm, 39×19mm, or custom




    Typical application
    Vehicle management, Automatic Identification (Vehicle Automatic Vehicle Identification, AVI)
    Highway tolls (not parking charge System, Electronic Toll Collection System, ETC)
    Items of supply and marketing management
    Warehouse, asset management
    Tobacco shipping pallet
    Mold repair tracking
    Patrol check in
    Container identification
    Computer aided software engineering tracking
