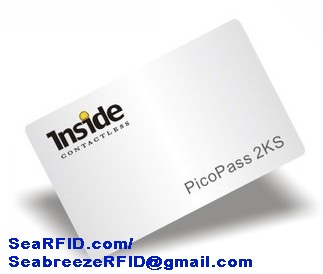

PicoPass 2KS/16KS/32kS chip Card, ISO 14443 TypeB/A Protocol, ISO 15693 Protocol induction distance reach 1.5 meters

PicoPass^TM chip is the French Inside Secure the development of a kind security chip, is a family of dual-standard contactless memory chips compliant with both ISO 14443B and ISO 15693 protocol standards. Dual standard enables to obtain higher communication speed at short distances using ISO 14443B or extended communication range using ISO 15693 in case data exchange speed is less important. It is automatically accept commands through the appropriate protocol standard.

An optional PicoPass^TM/A version enables the chip to communicate using ISO 14443A standard only.

Product characteristics:
PicoPass^TM can communicate at up to 1.5m distance with a gate antenna and up to 70cm distance with a single antenna using ISO 15693 or at approximately 10cm using ISO 14443B or ISO 14443A standards. Fast anti-collision capability enables to treat multiple tags in the operating field.

PicoPass^TM 2KS contains 2 kbits of non-volatile read/write memory including personalization area protected by a fuse. PicoPass^TM 2KS employs cryptographic security for data protection and chip authentication. Two unique secret keys are used to protect two different applications or to manage crediting and debiting of a secure stored value area. Cryptographic security protections can be disabled during personalization phase.

PicoPass^TM 16KS offers multi-application capabilities and/or extended data storage capabilities thanks to its 16 kbits of memory space. PicoPass^TM 16KS can be configured as either PicoPass^TM 2KS with a single extended application memory or as 8 fully independent PicoPass^TM 2KS chips.

PicoPass^TM 32KS contains simply 2 PicoPass^TM 16KS chips integrated on the same silicon.

Chip Features
ISO 14443B and ISO 15693 with auto-detection, optional ISO 14443A
Operating range up to 1.5m
Communication speed up to 424kbps
32k, 16k or 2k bits of EEPROM versions
Write-once memory space for personalization data protection
Multi-application mapping: up to 16 applications of 2k bits
Independent credit and debit secret keys for each application
Authentication using INSIDE's proprietary cryptographic algorithm
PowerGuard anti-tearing function
Fast anti-collision management: up to 100 chips/second
Compliant with other PicoTag family
Personalization kits available

Aviable Crafts
Printing: Offset Printing, Silkscreen Printing, Thermal printing, Ink-jet printing, Digital printing.
Security features: Watermark, Laser ablation, Hologram/OVD, UV ink, Optical Variable ink, Hidden barcode/Barcode mask, Graded Rainbow, Micro-text.
Others: Chip data initialization/Encryption, Personalized magnetic stripe programed, Signature panel, Barcode, Serial number, Embossing, DOD code, NBS convex code, Die-cut.

Competitive Advantage
The best price;
Excellent quality;
Fast delivery;
Large capacity and a wide range of products;
Accept small order;
ODM and OEM products according to customer's demand.

Declare: The showing picture is only for reference of our product. All related to intellectual property rights of trademark are belongs to trademark company.
