China production Contactless SWC1808 CPU chip series / PKI CPU chip
card
China developed production Contactless CPU Card Chip (4k/8k/16k/32k
bytes)

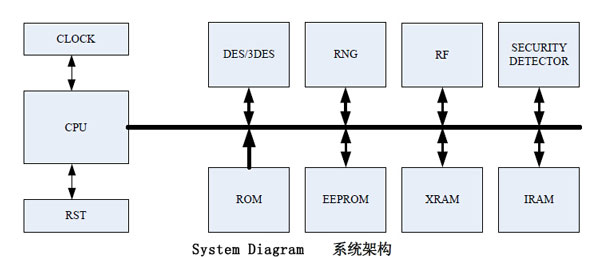

China developed production Contactless CPU Card Chip is a cost and
feature optimized contactless card chip. Can meet the requirements
in all-in-one card and multi-purpose card applications such as
public transport system, e-purse,Identification,etc.The CPU chip
integrates high performance 8 bits microprocessor, RF circuit
according to ISO/IEC14443 Type A, true random number generator, DES/3DES, SM1/SM4. The SWC1808 CPU chip series products include SWC1808D,SWC1808A,
SWC1808B, SWC1808C, and the EEPROM capacity is 4k,8k, 16k, 32k
bytes respectively.
Features
According: ISO/IEC 14443 Type A
Turbo 51 core
4k/8k/16k/32k bytes EEPROM
True random number generator
Two 16-bit programmable timers
Hardware DES/3DES
Hardware SM1/SM4
Data retention time: >10 years
Erase/write endurance: >100,000 times
Contactless PKI CPU Card Chip SWC1824 (72k bytes)
The contactless CPU card chip SWC1824 is specially designed for
e-passport. Based on 32bits RISC SC100 CPU, SWC1824 is fabricated
in 0.18um CMOS EEPROM process. It consists of 208k bytes ROM, 8k bytes RAM, 72k bytes EEPROM, timer, watch dog, clock generator, true random number generator,
interrupt controller, system controller, DES/3DES, 1024bits RSA, CRC, security control module, RF interface with baud rate up to
847Kbps, etc.
Features
According: ISO/IEC 14443
Baud rate up to 847Kbps
SC100 processor, MPU
208k bytes ROM
8k bytes RAM
72k bytes EEPROM
Data retention time: > 10 years
Erase/write endurance: > 100,000 times
Hardware DES/3DES
PKI algorithm processor to support 1024bits RSA, 256bits ECC and
SM2
True random number generator
Support detection of frequency, light, temperature, and probe
Support memory encryption
CPU card Parameters:
Frequency: HF 13.56MHz
Conform standard: ISO/IEC 14443
R/W distance: 1-10cm
Operation temperature range: -25℃-+70℃
Write endurance: > 100,000 times
Data retention: > 10 years
Size: 85.5×54×0.76 or non-standard shape cards
Materials: PVC/PET/PETG,0.13 Copper wire,can provide white
card,printed cards,portrait cards,etc.
Production process: ultrasonic auto plant lines/Automatic Welding
Aviable Crafts
Printing: Silkscreen Printing,thermal printing,ink-jet printing
Security features: Laser ablation,Hologram/OVD,UV ink,hidden
barcode/barcode mask,Graded Rainbow,Micro-text.
others: Magnetic stripe,Signature strip,barcode,Serial
number,embossing,Encoding,die-cut.
Shanghai BUS Card:
Shanghai Mini BUS Card:
Declare: The showing picture is only for reference of our
product.All related to intellectual property rights of trademark
are belongs to trademark company.
