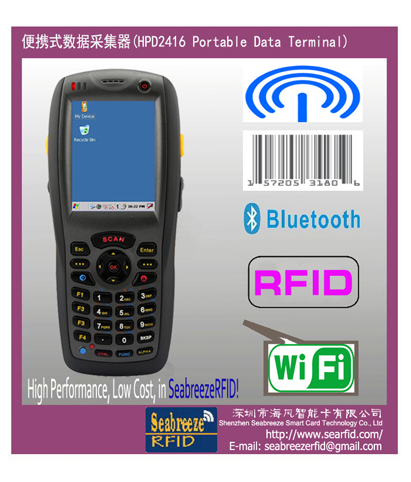

    HPD2416 Portable Data Terminal

    HPD2416 Portable Data Terminal

    Portable Data Terminal(PDT) is also known as the portable data acquisition collector,or Hand-hold Terminal (HT).
    Portable data collector is included: RFID read and write, bar code scanning, Chinese characters display, data acquisition, data processing, data communications, and other functions in one of the high-tech products, the computer information technology and intelligent data read technology perfect combination, hardware with computer equipment for provision of basic: CPU, memory, rely on battery power supply, variety of peripheral interface. On the software has the essential requirements of computer run: may program development platform and independent that application program.
    PDT can according to user requirements, the application program is downloaded to the PDT in the computer system. From the computer network system to work independently, the basic data in PDT can be obtained through the PC database, import and storing the results of operations can also be timely to the database.
    HPD2416 can be collected at the scene of the real-time transmission of data to the computer. Compared with the ordinary portable data collector, further improve the operator's work efficiency, make the data from the original native check, save into a remote control, real-time transmission. HPD2416 portable, high performance, low cost, widely used in public utilities, logistics, warehousing, inventory management and other special industries, need to collect information in many environments, robust characteristics, thus become the most ideal tool.
    Technical parameters
    Main body
    CPUSAMSUNG S3C2416 533 MHz
    RAM128 MB
    ROM256 MB
    Operating system39 key/conductive rubber button
    InterfaceUSB
    Display screen
    Display screen type2.8" LCD
    Display resolution320×240
    Viewing area43.2×57.6mm
    Pixel size60nm×180nm
    Backlight typeLED
    Touch screen
    Touch screen type4 wire resistive
    Positioning accuracy0.5mm
    Response time15ms
    Light transmission rate92%
    Surface hardness(Mohs level)7
    Reading and transmission
    Barcode enginechoose 1 dimensional linear code/2D barcode scanning; One dimensional barcode scanning 100 times/sec ±10 times
    Support code system
    UPC-A,UPC-E,EAN-13, EAN-8,Code 39, Code 39 full ASCII, Trioptic Code 39, Interleaved 2 of 5, Codabar(NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey, UCC/EAN 128, China Post, China Finance.
    RFID readeroptional LF/HF/UHF
    Communication functionGPRS/WiFi/bluetooth module can be integrated
    Using environment
    Operating environment-10°C-+50°C (+14℉-+122℉)
    Storage conditions-30°C-+70°C (-22℉-+158℉)
    Humidity10%-90% (non condensing)
    Waterproof and dustproof levelIP54
    Electrostatic protection6KV contact, 12KV air
    Drop test1.2 meters drop concrete ground, 26 times
    Other
    Appearance size160×70×30mm
    Weight260g
    Battery3600mAh/3.7V lithium ion battery
    Languagesimplified Chinese/traditional Chinese/English
    Buzzer
    passive type, adjustable frequency
    Operation time
    Continuous operation8 hours (scan 1800 times/h)
    Normal operation12 hours (scan 200 times/h)
    Standby time400 hours
