Long-distance High Frequency Reader

    Buy cheap Long-distance High Frequency Reader from wholesalers

    Buy cheap Long-distance High Frequency Reader from wholesalers
    • Buy cheap Long-distance High Frequency Reader from wholesalers

    Long-distance High Frequency Reader

    Ask Lasest Price
    Brand Name : SeabreezeRFID
    Certification : RoHS
    Model Number : SHY-0200
    Delivery Time : In stock
    Payment Terms : L/C, T/T, Western Union, PayPal
    Supply Ability : 200pcs/month or Specify the number
    • Product Details
    • Company Profile

    Long-distance High Frequency Reader

    Long-distance High Frequency Reader
    SHY-0200 Series Long-distance High Frequency Reader is high power reader products,volume small, solid shell, beautiful.Products using industrial-grade design, able to adapt to the low temperature, poor working conditions. The reader supports compliance with ISO/IEC15693 and ISO18000-3 standard electronic tags from multiple vendors; this product faster processing speed, with good anti-collision ability to identify, recognize electronic tags at speeds up to 60pcs/sec.
    The Long-distance reader can be widely used in books/archives management, production line management, jewelry inventory, token anti-counterfeiting, drug management and channel access control attendance, identification and inconvenient reading RFID card occasions.
    Main features
    Shell uses the high strength aluminum alloy and ABS engineering plastic seal
    Working frequency is 13.56MHz, support ISO/IEC15693 and ISO18000-3 standard
    Maximum output power: 1.5W
    Product is stable, fast reading card, up to 60pcs per second
    Long read distance, single antenna as far as 70cm, double antenna as far as 100cm
    Integration of a variety of communication interface (RS232/485, Wiegand), convenient user for system integration
    In combination with multiplexer, implement a reader to connect multiple antennas, reduce the cost of application
    Integrated work a double color lamp, real-time understanding of module working condition
    Provide DLL and demonstration software source code to facilitate further development

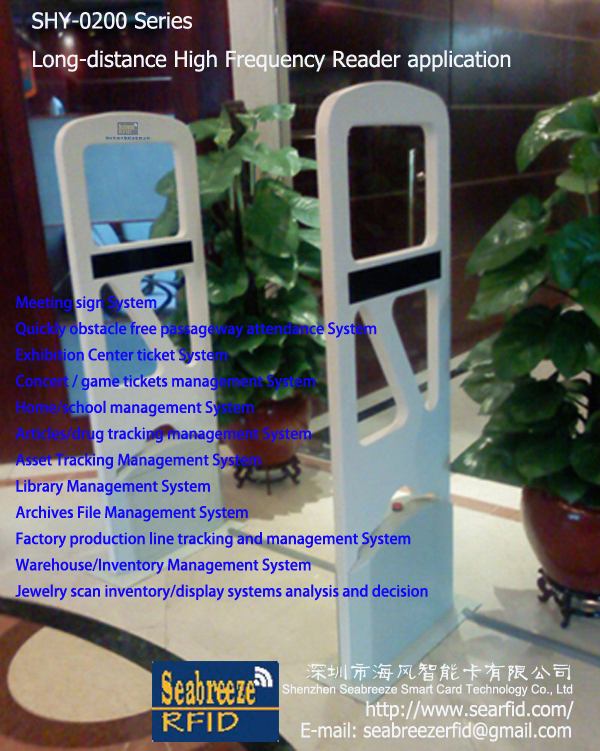

    Typical application areas:
    Meeting sign System
    Quickly obstacle free passageway attendance System
    Exhibition Center ticket System
    Concert / game tickets management System
    Home/school management System
    Articles/drug tracking management System
    Asset Tracking Management System
    Library Management System
    Archives File Management System
    Factory production line tracking and management System
    Warehouse/Inventory Management System
    Jewelry scan inventory/display systems analysis and decision
    Product parameters
    Product modelSHY-0200
    Operating frequency13.56MHz
    Supports standardISO/IEC 15693 and ISO/IEC 18000-3 standard
    Transmit power1.5W
    Identificationfarthest distance of single antenna 70CM, dual antenna 100CM farthest
    Recognition speedup to 60pcs/second
    Antenna interface1xSMA (50Ω)
    Communication interface1 road Rs232/USB, 1 road Wiegand 26/34
    I/O portno
    Working modereader mode, scan mode (can be set via software)
    Work instructions1 built-in buzzer, 1 double color work indicating lamp
    Power supplyDC 12V
    Power consumption< 5W
    Physical properties
    SizeL134.5×W106×H27mm
    Weight250g
    Environmental parameters
    Working temperature-20℃~+60℃ (-4℉-+140℉)
    Storage temperature-45℃~+85℃ (-49℉-+185℉)
    Relative humidity5%-80%

    High-frequency Reader square tray Antenna
    The antenna supports compliance with ISO/IEC15693 standard multiple vendors reader and an electronic tag; with fast tag identification processing capability and good capacity for anti-conflict, identification of high speed electronic tags, using ABS plastic shell, durable; used in conjunction with medium/Long-distance reader can be used in many areas such as product identification, industrial automation, production tracking , animal identification, library/archives to identify management.
    Antenna technical parameters
    Product modelSHY-0200T
    Operating frequency13.56MHz
    Supports standardISO/IEC 15693 and ISO/IEC 18000-3 standard
    Connecting interfaceSMA
    Maximum support power10W
    Antenna impedance50Ω
    Reading distance (Max)single antenna 50cm-75cm
    Working temperature-20℃~+60℃ (-4℉-+140℉)
    Storage temperature-25℃~+70℃ (-13℉-+158℉)
    Housing materialABS engineering plastics
    SizeL480mm×W400mm×H30mm
    Shell colorWhite
    Weight1.5Kg
