Impinj UHF Dry Inlay, Impinj UHF Clear Dry Inlay, Impinj H41 Inlay, Impinj H42 Inlay, Impinj H47 Inlay

Impinj UHF Dry Inlay, Impinj UHF Clear Dry Inlay, Impinj H41 Inlay, Impinj H42 Inlay, Impinj H47 Inlay

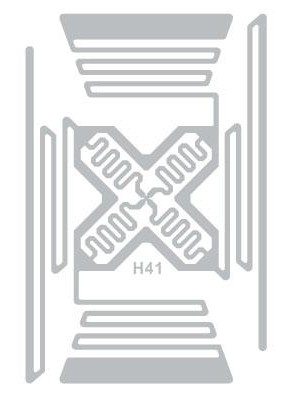

Impinj H41/H42/H47 Inlay is typical type UHF RFID tag with Impinj Monza4/Monza5 chip embedded. As one of long read distance UHF RFID tag, it can be read at distance of 5 meters, therefore is frequently used in logistics, transportation, library, hosipital for identification & tracking purpose.

**Inlay Parameter**
	H41	H42	H47
Protocol Standard	ISO/IEC 18000-6C,EPC Class1 Gen2
Frequency	860~960MHz
Operating Mode	Frequency-Hopping Spread Spectrum, FHSS
Chip	impinj Monza 4D, 4E, 4QT
EPC	128bits, Read/write	496bits, Read/write	128bits, Read/write
TID	48bits, Read only
User memory	32bits, Read/write	128bits, Read/write	512bits, Read/write
Password	32bits allers password, 32bits kill password, Read/write
Write cycles	100,000 times
ESD-HBM/CDM	2000v, HBM
Antenna Material	Aluminum
Substrate	PET
Antenna Process	Aluminum Etch (AL 9um)
Operating Limits	-40℃~+70℃/20%~90%RH
Storage Limits	-20℃~+50℃/20%~90%RH (Without condensation)
Antenna Dimension	30x46mm	44x44mm	44x44mm
Description	Two independent antenna ports for high performance and well-round reading	● Two independent antenna ports for high performance and well-round reading. ● True 3D antenna technology enabling readers to read from different angles, thus significantly improving readability rate Dipole Antenna. ● Valid communication distance of over 3 meters (in relation to working environment).	True 3D antenna technology enabling readers to read from different angles, thus significantly improving readability rate Dipole Antenna.

Application
Clothing

Retail
Asset management
Logistics

Operating Warning
1.Inlays with black ink dot are for bad products,do not use. Position is shown on the right.
2.When carrying and applying inlays, keep away from water, violent bump and squeezing.

Package

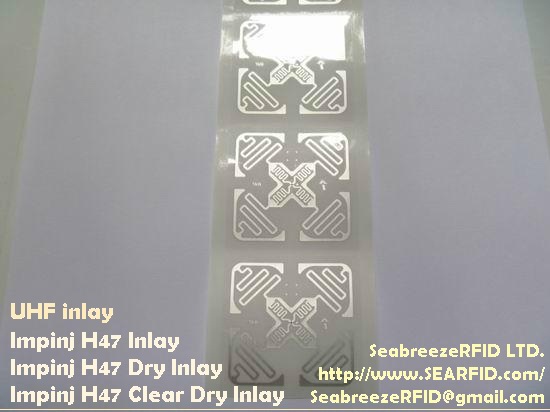

Inlay Format: in roll
Delivery Format: 10000±100pcs/roll, 1 roll/carton
Packing format
1, Each roll of inlay has one strips of 21mm-width glassine paper as mounts to protect chip and antenna, so as to avoid extrusion and water vapor.
2, Waterproof, anti-collision, antistatic
3, In antistatic bags

**Impinj Model Features**
Model	User Memory	EPC Memory	Serialized TID	True3D^TM Antenna Technology	QT^® Memory Security
Model	(bits)	(bits)	Serialized TID	True3D^TM Antenna Technology	QT^® Memory Security
Monza 5		up to 128	yes
Monza 4D	32	up to 128	yes	yes
Monza 4E	128	up to 496	yes	yes
Monza 4QT	512	up to 128	yes	yes	yes

Operating Conditions and Electrical Characteristics Overview
Parameter	Min	Typ	Max	Units
Operating Frequency	860		960	MHz
Read Sensitivity (Dipole Antenna)		-20		dBm
Write Sensitivity (Dipole Antenna)		-16		dBm
Operating Temperature	-40		85	ºC
Memory Retention (non-volatile)		50		Years
Memory Programming Cycles (non-volatile)		100,000		Cycles
