Impinj E31(AZ-01) Inlay, Impinj E41 Inlay, Impinj E41B Inlay, Impinj E41C Inlay, For logistic warehouse management

Ask Lasest Price
Brand Name :	SeabreezeRFID
Certification :	RoHS
Model Number :	Impinj E31, inpinj E41, inpinj E41B, inpinj E41C
Delivery Time :	Existing sample 8 work days sent to your office
Payment Terms :	L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :	5,000,000pcs/month or Specify the number
Price :	0.05~0.16

Add to Cart

Product Details
Company Profile

Impinj E31(AZ-01) Inlay, Impinj E41 Inlay, Impinj E41B Inlay, Impinj E41C Inlay, For logistic warehouse management

Impinj E31(AZ-01) Inlay, Impinj E41 Inlay, Impinj E41B Inlay, Impinj E41C Inlay, Suitable for logistic warehouse management

Impinj E31(AZ-01) Inlay: Propeller is most common in the Impinj micro series products, suitable for a variety of traditional tray, packing case and innovative RFID applications, with industry leading read range, reliability, and cost performance. The Impinj E31Inlay reading distance and chip capacity, antenna size, and other performance, consistent with the AZ9540, only read distance is slightly less than AZ9540. So this is mainly used in the field of logistic warehouse management.

Impinj E41 Inlay Description

Adaptation to frequency hopping mode, super-strong anti-jamming capability
Customized reading/writing standard data, quicker efficiency with professional application system
Valid communication distance of over 8 meters (in relation to reader and antenna), globally unique 128 bit

ID No. Label can be encapsulated into adhesive sticker, labels of 2''* 4'', 4''* 4'', 6''* 4'', etc. Mainly used on logistic warehouse management, such as Walmart Labels, labels of factory warehouse

management, etc.

Impinj E41B Inlay & Impinj E41C Inlay Description
Low dielectric constant materials, such as HDPE.
Case-level, pallet-level, gate-level applications.
Logistics industry.

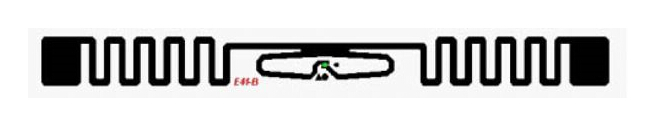

Impinj E41B inlay suitable for low dielectric constant materials (i.e., light material, such as high density polyethylene, i.e. packaging plastic), medium dielectric constant material (i.e. medium material, such as cloth) on the surface.
Impinj E41C inlay suitable for medium dielectric constant material (i.e. medium material, such as cloth) on the surface, heavy dielectric constant material (i.e. medium material, such as book paper) on the surface.

**Technical Parameters**
	impinj E31	impinj E41	impinj E41B	impinj E41C
Support protocol	ISO 18000-6C, EPC Class1 Gen2
Operating Frequency	860~960MHz
Wafer	Impinj M3	Impinj M4	Impinj Monza4D, 4E, 4QT
Operating Mode	Frequency-hopping spread spectrum (FHSS)
Basal material	PET, PI
Antenna material	Etch Aluminium
Operating Temperature	-20℃~+80℃
Read Distance	6m	8m	10m	10m
Die Cut Size	15X98mm	12X99mm	12X99mm	12X99mm
Antenna Size	8X92mm	8X95mm	8X95mm	8X95mm

Application range: reading distance and chip capacity, antenna size, and other performance, consistent with the AZ9540, only read distance is slightly less than AZ9540. So this is mainly used in the field of storage logistics.

Competitive Advantage
The best price;
Excellent quality;
Fast delivery;
Large capacity and a wide range of products;
Accept small order;
ODM and OEM products according to customer's demand.

**Impinj Model Features**
Model	User Memory	EPC Memory	Serialized TID	True3D^TM Antenna Technology	QT^® Memory Security
Model	(bits)	(bits)	Serialized TID	True3D^TM Antenna Technology	QT^® Memory Security
Monza 5		up to 128	yes
Monza 4D	32	up to 128	yes	yes
Monza 4E	128	up to 496	yes	yes
Monza 4QT	512	up to 128	yes	yes	yes

Operating Conditions and Electrical Characteristics Overview
Parameter	Min	Typ	Max	Units
Operating Frequency	860		960	MHz
Read Sensitivity (Dipole Antenna)		-20		dBm
Write Sensitivity (Dipole Antenna)		-16		dBm
Operating Temperature	-40		85	ºC
Memory Retention (non-volatile)		50		Years
Memory Programming Cycles (non-volatile)		100,000		Cycles

Impinj E31(AZ-01) Inlay, Impinj E41 Inlay, Impinj E41B Inlay, Impinj E41C Inlay, For logistic warehouse management
