PC (polycarbonate) is a new thermoplastic engineering plastic, polycarbonate having excellent performance of electrical insulation and mechanical properties, especially the impact resistance performance of the most prominent, hard, high toughness, allowing the use of a wide range of temperature (-100℃~+130℃), the transparency of up to 90%, known as the transparent metal, flame retardant good performance, non-toxic, easy processing molding.

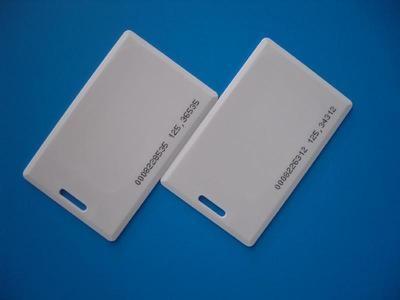

The use of PC material for manufacturing RFID chip card, high temperature resistant,in the environment of high temperature will not bend, non-toxic environmental protection, beautiful and durable. You can create all kinds of size, thickness and shape,surface can be silk screen pattern, LOGO, serial number.

Protocol standards: ISO 11785/11784, ISO 14443, ISO 15693,ISO 18000-6B/6C

Chip frequency: LF 125KHz/HF 13.56MHz/UHF 860-960MHz

Chip Type: MF1 IC S50/S70, MF0 IC U10, ICODESLI/SLI-S/SLI-L/SLIX, Desfire2K/4k/8K, Ti2048,EM4102,EM4200,EM4305,EM4450,TK4100,T5557,CET5500, Hitagl, Hitag2, Hitags, l Plus 2K/4K, FMl208 (CPU),etc.

Reading distance: LF/HF 2.5-10cm

UHF 1-10M(According to the reader antenna and application environments)

Reading time: 1-2ms

Operating temperature: 1-2mm thickness adapt temperature: -100℃-+130℃ (-148℉-+266℉)

2-4mm thickness adapt temperature: -100℃-+150℃ (-148℉-+302℉)

Operating humidity: 0-95%

Endurance: >100,000 times

Data retention: >10 years

Dimensions: ISO standard card L85.6mm×W54mm or specify the size,shape

Packaging materials: PC,0.13mm copper wire or etched aluminum

Packaging process: ultrasonic auto plant lines / Automatic Welding

identification card,enterprise/campus card,bus card,highway fees,parking,community management,Gas stations, low temperature and high temperature operating environments,etc.
