KR222 Access Control Reader,Wiegand/RS232/RS485/ABA output

KR222 Access Control Reader,Wiegand/RS232/RS485/ABA output

KR222 Access Control Reader using advanced RF receiving circuit design and industrial level embedded micro controller, combined with efficient decoding algorithm,completion of the reception 64bits Read-Only uem4100 compatible ID card, with a high receiver sensitivity, work current small, single DC power supply, low price, high performance characteristics. Built-in buzzer and LED indicator, plain and simple. Easy to install, fully functional, versatile, ideal for access control systems of all sizes.

Main features

Nice shape, with EM, reader optional

Operating current of less than 60mA

With output protection

Anti-metal shielding and anti-interference ability of the reader to each other

Wiegand 26 bits standard format for data output

Built-in Wiegand 26 to Wiegand 34 transformation

Connection mode in accordance with international standard, extensible RS232, RS485 output

Dampproof and dustproof, fully sealed design for easy installation, can be installed in the outdoor harsh conditions. No mechanical abrasion durable

Conform to the Chin standard GB/T17626.4/IEC61000-4-4 standard electrical transient bursts of immunity test (4000V, 5KHZ supreme test parameters).

**Technical parameters**
Model	KR222
Color	black
Size	length124×width76×height23.5mm
Read card types	EM4102 and compatible ID card, 1 and compatibility IC card
Output	WG26 bit(default output), WG34 bit(grey wire connection can become WG34 output)
Read distance	5～10cm
Working frequency	125KHz/13.56MHz
Response speed	<0.2s
Read card interval	<0.5s
Working voltage	DC +9V～+16V (suggest using DC12V)
Static current	<35ma
Dynamic current	<70ma
Extension interface	extensible RS485/RS232/ABA output format
Working conditions	temperature 25℃～+75℃, humidity 10%～90%
Built-in speaker	buzzer
Waterproof and dustproof	yes
Built-in antenna	yes
Antistatic	15KV
Over-current over-voltage protection	yes
Connection distance	Wiegand≤100 meters, RS485≤1200 meters, RS232/ABA≤10 meters
Shell material	PVC and powder-coated, interior can be poured black resin glue (effective waterproof)

Use directions

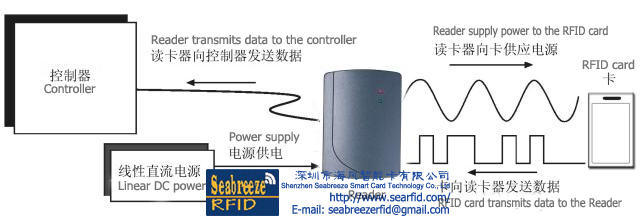

When the card is close to the reader, the red light turns green light flashes once again become a red light, buzzer sounded a loud said to send data, the same ID card, the gap between the two card read less than 500 ms, not sending data. If after reading card, ID, IC rf card is still in the induction zone, card reader will not do any hint, nor to send data. Different ID, IC rf card into the induction zone respectively, reader continuous read rf card and output data.

**Connecting wire directions**
Wiegand26/34	RS485	RS232
Red wire: DC12V	Red wire: DC12V	Red wire: DC12V
Black: GND	Black wire: GND	Black wire: GND
Green wire: D0	Green wire: 4R+	Green wire: RX
White wire: D1	White wire: 4R-	White wire: TX
Blue wire: LED
Yellow wire: BEEP
Gray wire: WG26/34
Orange wire: doorbell (Shape with a doorbell button with orange wire)
Orange wire: doorbell (Shape with a doorbell button with orange wire)

Applications: access control and attendance, charges, anti-theft, Patrol, buildings intercom, car park management system,expressway,e-commerce and other RFID applications.
