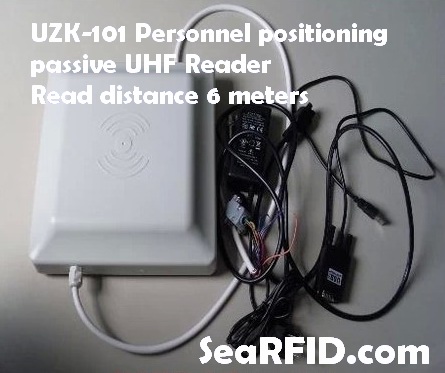

UZK-101 UHF Personnel positioning passive Reader, distance 6 meters

UZK-101 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

FEATURES

● Self-intellectual property;

● Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

● 902~928MHz frequency band(frequency customization optional);

● FHSS or Fix Frequency transmission;

● RF output power up to 30dbm(adjustable);

● 8dbi antenna optional with effect distance up to 6m*;

● Support auto-running, interactive and trigger-activating work mode;

● Low power dissipation with single +9 DC power supply;

● Support RS232, RS485, Wiegand interface;

● Provide DLL and Demonstration Software Source code to facilitate further development.

CHARACTERISTICS

Absolute Maximum Rating

Electrical and Mechanical Specification

Under T_A＝25℃,VCC＝+9V unless specified

INTERFACE

* Effective distance depends on antenna, tag and environment.
