U Code Inlay, U Code MR34 Inlay, U Code 98-4 Inlay, U Code 95-8 Inlay, U code AN1538 Inlay, U Code A31 Inlay, U Code GP33 Inlay

Performance Index

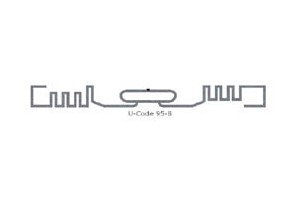

Model	U Code MR34	U Code 98-4	U Code 95-8	U Code AN1538	U Code A31	U Code GP33
Support Protocol	EPC Class 1 Gen 2, ISO 18000-6C
Operating Frequency	860~960MHz
Operating Mode	Frequency-Hopping Spread Spectrum (FHSS)
Wafer	U-Code (G2XL: 240bit; G2XM: 880bit)
Read Distance	1.2 meter	4.5 meter	4.5 meter	> 2 meter	> 6 meter	1.5 meter
Base Material	PET, PI
Antenna Material	Etched Aluminum
Operating Temperature	-20℃~+80℃
Die Cut Size	14mmX34mm	10mmX98mm	10mmX95mm	30mmX50mm	19mmX93mm	32.5mmX20.5mm
Description	Suitable for short to medium distance application, fast read speed, apply to the encapsulation of the clothing tag	Good induction reading distance, suitable for Supply chain management, clothing security management, Asset management	Suitable for long distance application, logistics management, bags, tray and luggage application	Can be used for the encapsulation of the clothing tag, label and other products form	Adaptation to frequency hopping mode, super-strong anti-jamming capability Customized reading/writing standard data, quicker efficiency with professional application system Valid communication distance of over 6 meters (in relation to working environment) Applicable to solutions for vehicle management (applicable to logistics management as well)	Suitable for mid-range applications, design compact of appearance for single product, optimum choice of the Small clothing tag and the drugs

Application

Consumer electronics
Fashion retail
FMCG
Supply chain management
Asset management

UHF EPC UCODE Modules Features

UCODE G2XM and UCODE G2XL

These ICs help keep track of your products throughout manufacturing. Passive RFID chip solutions make pallet, case and item-level tracking reliable and cost-effective, helping to stop counterfeiting while speeding up inventory counting. A unique password-protected custom command set includes EAS for increased theft protection, a read protect feature to prevent unauthorized memory access and calibration, allowing optimization of the reader-to-tag communic The ICs are EPCglobal C1G2 1.0.9 certified and compliant to EPCglobal C1G2 1.1.0. They provide unsurpassed UHF performance with reliable operation in dense reader domains and over long read ranges. They feature an extended, 240 bit EPC number and 64 bit tag identifier. Plus, UCODE G2XM provides a 512 bit on-chip dedicated user memory.

UCODE offers high anti-collision rates, long operating distances, and can help protect your brand

Ideal for supply chain and logistics applications requiring high speed operation, UCODE passive UHF transponder ICs offer high anti-collision rates and long operating distances, and can help protect your brand.

Key benefits
Fast inventory management
Long range operation
High anti-collision rate
Brand protection
Global use from 840~960MHz, with wide temperature range: -40°C~+85°C

Key features
EPCglobal compliant
Long read range due to high chip sensitivity
Multiple tag readability, through anti-collision function
Prevents unauthorized memory access, through read protection function
Global use from 840~960MHz, with wide temperature range: -40°C~+85°C

Competitive Advantage
The best price;
Excellent quality;
Fast delivery;
Large capacity and a wide range of products;
Accept small order;
ODM and OEM products according to customer's demand.

Attention:
For confirmation of frequency, such as the antenna by etching, its frequency is fixed and can not be changed.
If frequency need to be in customized, antenna has to be designed again.
About winding Antenna, frequency can be altered according to customer specific requirements. Other non-high frequency chip, their frequency is the standard frequency, the actual frequency should be asked for final confirmation.
